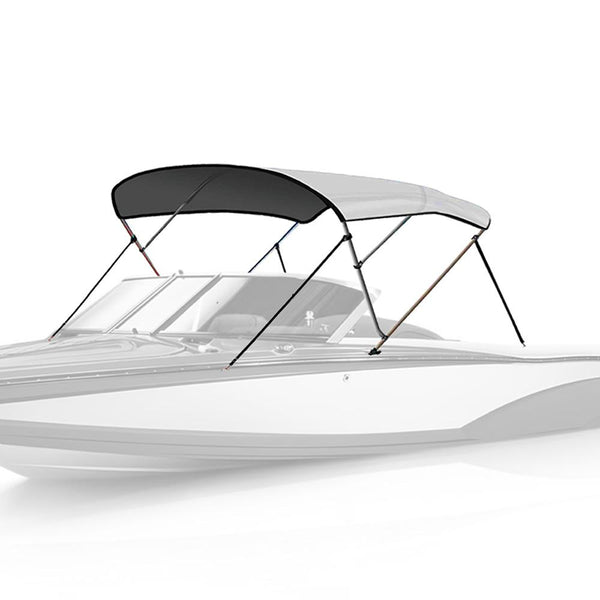

3 Bow Bimini Top LIGHT GREY 6 Sizes

SKU: 20105010

$99.99 $149.99 Save $50

Shipping calculated at checkout

🛒 Free Same-Day Shipping over $70

📦 30-Day Easy Return & Exchange

Only 4 left!

6'L x 46"H x 54"-60"W
6'L x 46"H x 61"-66"W
6'L x 46"H x 67"-72"W
6'L x 46"H x 73"-78"W
6'L x 46"H x 79"-84"W
6'L x 46"H x 85"-90"W
Package Included:
Solution dyed polyester & 600D polyester canvas Stainless Rear Support PoleStainless Rear Support Pole

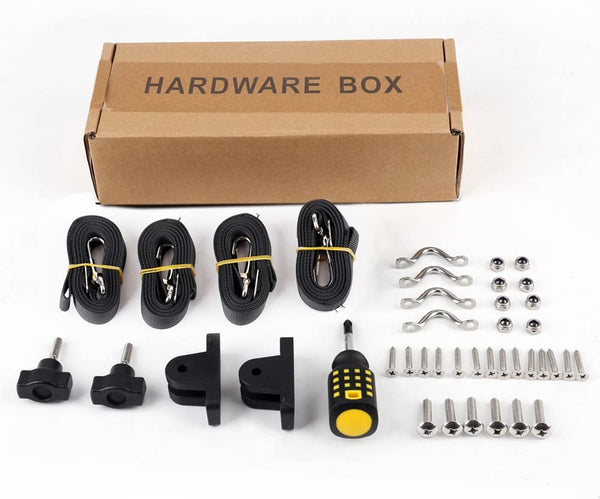

All stainless steel mounting hardwares.( 4 x adjustable straps for front and back included .) Color Coordinated Zippered Storage Boot

About this item

  • Fabric Option: Marine-grade 600D polyester canvas & 600D solution dyed fabric.Double overlapped stitching.

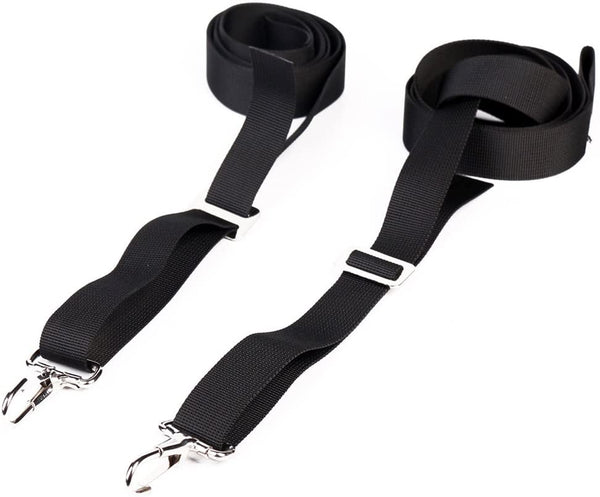

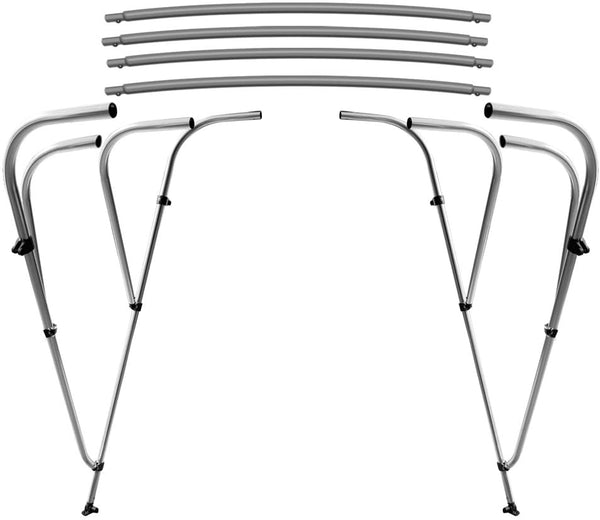

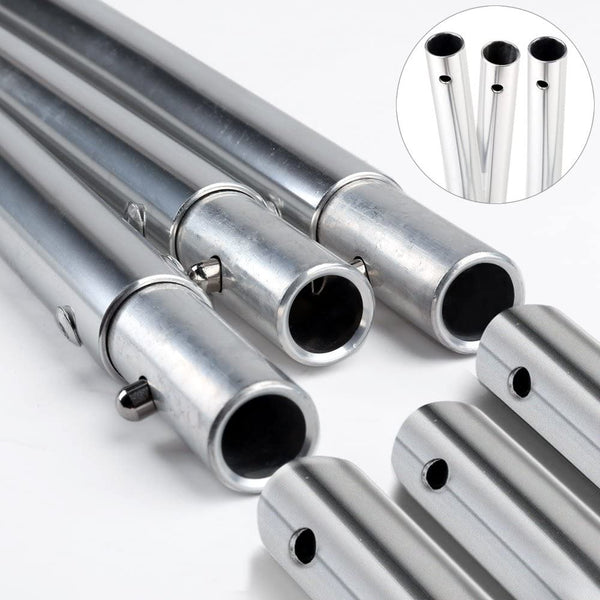

  • 1'' diameter aluminum frame with double-walled main bow legs for maximum strength and free quick release mounts.4 adjustable nylon straps for the front and the rear.
  • 13 optional fabric colors(There are 2 colors that are two tone):Beige, Black, Burgundy, Dark Grey, Green, Light Grey/White, Light Grey, Navy Blue, Navy Blue/White, Pacific Blue, Solution Dyed Light Grey, Teal, White.
  • 6 different sizes are available:6'L x 46"H x 54"-60"W & 6'L x 46"H x 61"-66"W & 6'L x 46"H x 67"-72"W & 6'L x 46"H x 73"-78"W & 6'L x 46"H x 79"-84"W & 6'L x 46"H x 85"-90"W.
  • All stainless steel mounting hardwares,color coordinated zippered storage boot and assemble instructions included.

How to measure your boat for a bimini top?


1. Using a tape measure,decide which length top provides the desired amount of shade coverage to your boat.

2. The pivotal mounting point will be approximately at the center point of the top on each side of your boat.

3. After determining where the pivotal mount location will be on each side of the boat, measure the distance beteewn these mounting points to determine the width you need.

4.While standing inside the boat, measure from the pivotal mounting point straight up to determine the desired height.

Note: The max speed of your boat is 25MPH when the bimini top opened.


Carefully consider the size that you need when selecting your bimini top. The mounting point you choose will impact the size of frame you need, the position of the top, and the shade it will provide.

WIDTH: Determine where you want the mounting points to be because this will set the width of the frame. Keep in mind that this will also determine which part of the boat gets shade. It will also set the position of the top when it is folded up and not in use.

LENGTH: After you have chosen the mounting point and determined the width, then the length of the top will determine which part of the boat receives shade and how much coverage is available.

HEIGHT: Consider the primary use of the bimini to select the proper height of the frame. Do you want to be able to stand under it? Fish under it? Measure upward from the selected mounting point while standing on the deck to get a feel for how much room you will have once the bimini is installed.

Note: The max speed of your boat is 25MPH when the bimini  top opened.


    • Provides protection from sun and rain with high quality material
    • Allows for an open view for all passengers and drivers
    • It is convenient to put up or down, as well as easy to store
    • Protects the boat from sun rays, extending the life of the boat's interior
    • Provides protection while still allowing for great circulation
    • Easy assembly and storage allows boaters to quickly put the top down if they want to go faster or easily put the top back up if they want to cruise at leisure
    • While in use rear poles provide superior support for the bimini frame and allows the top to be stored out of the way
